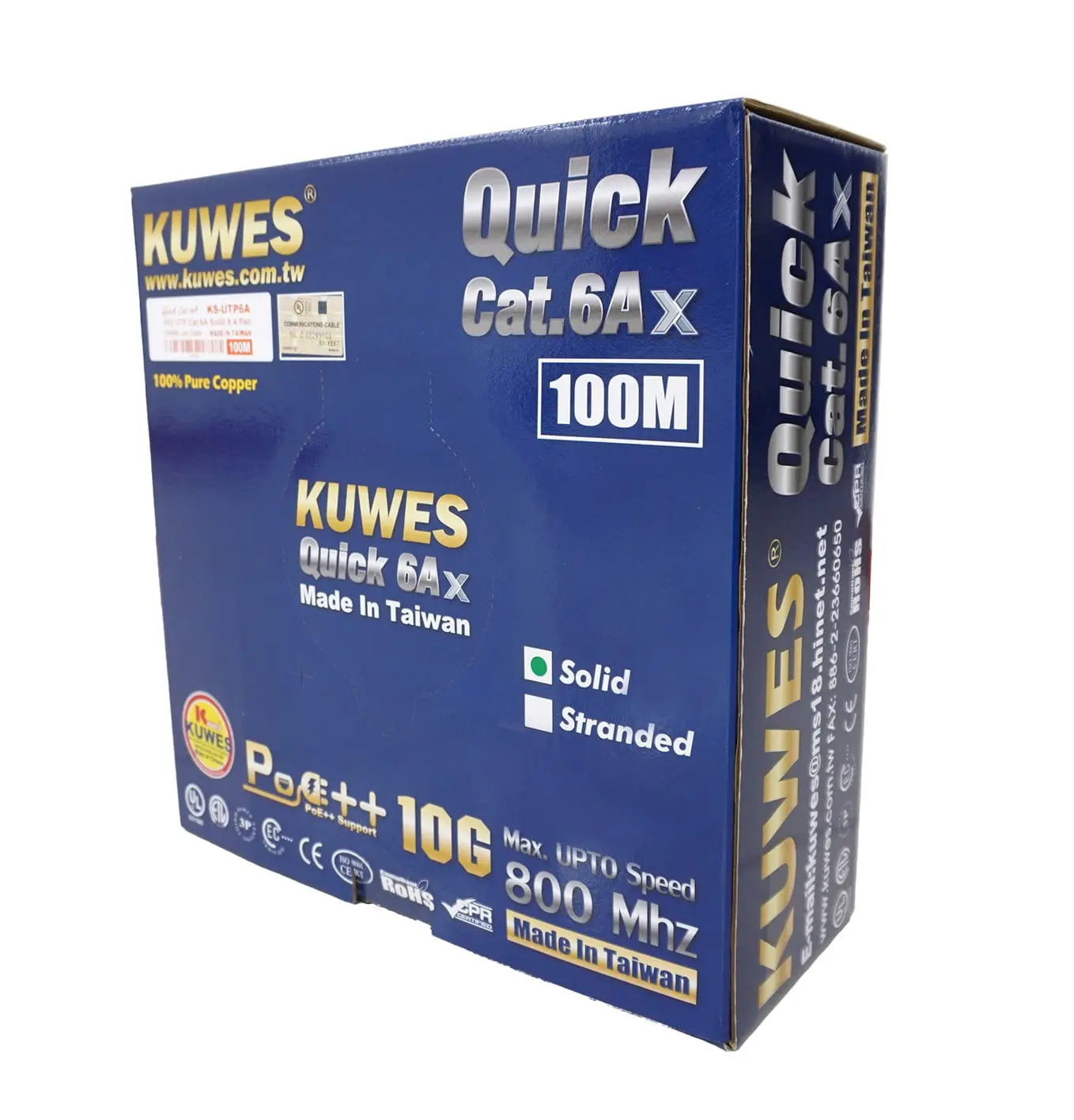

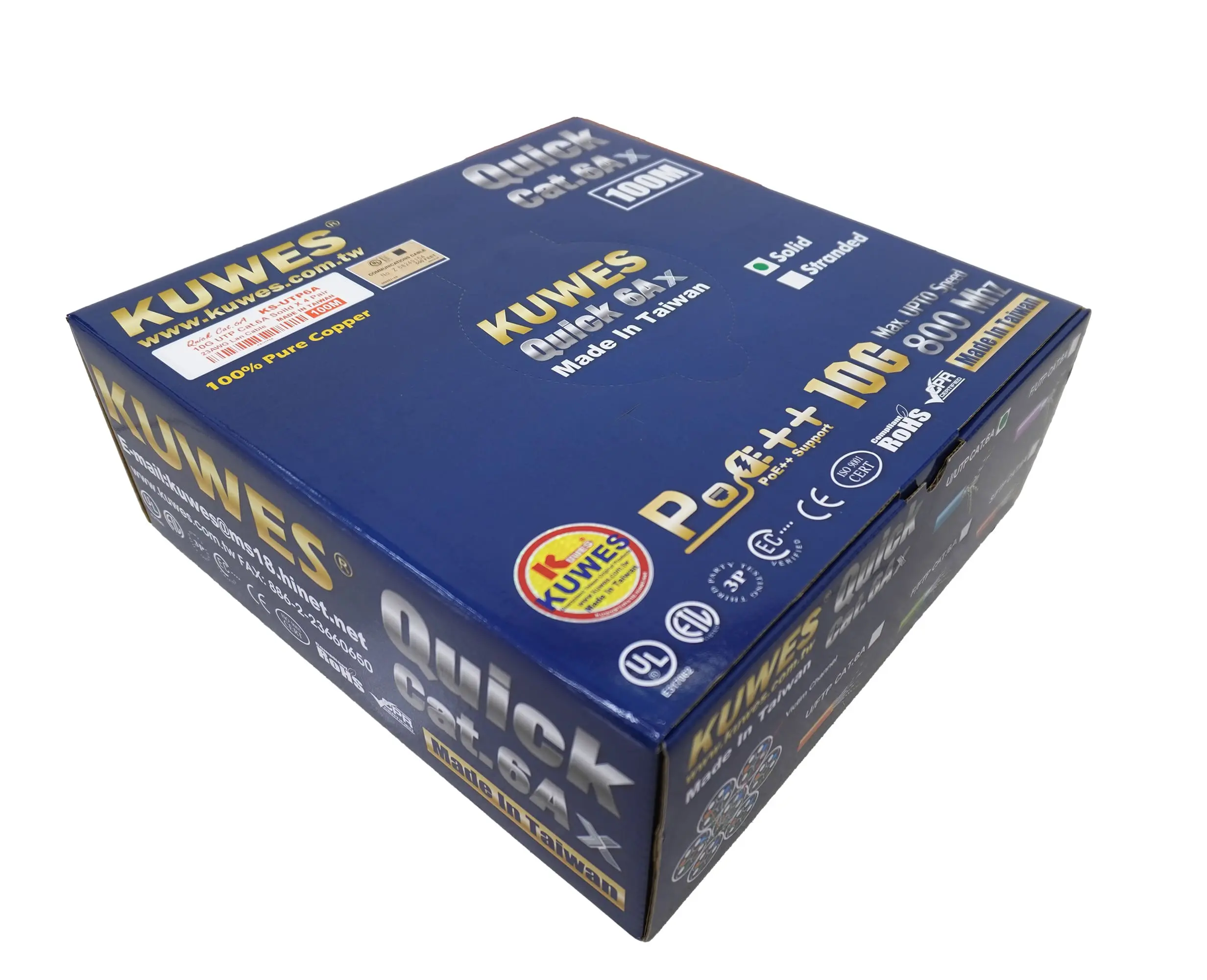

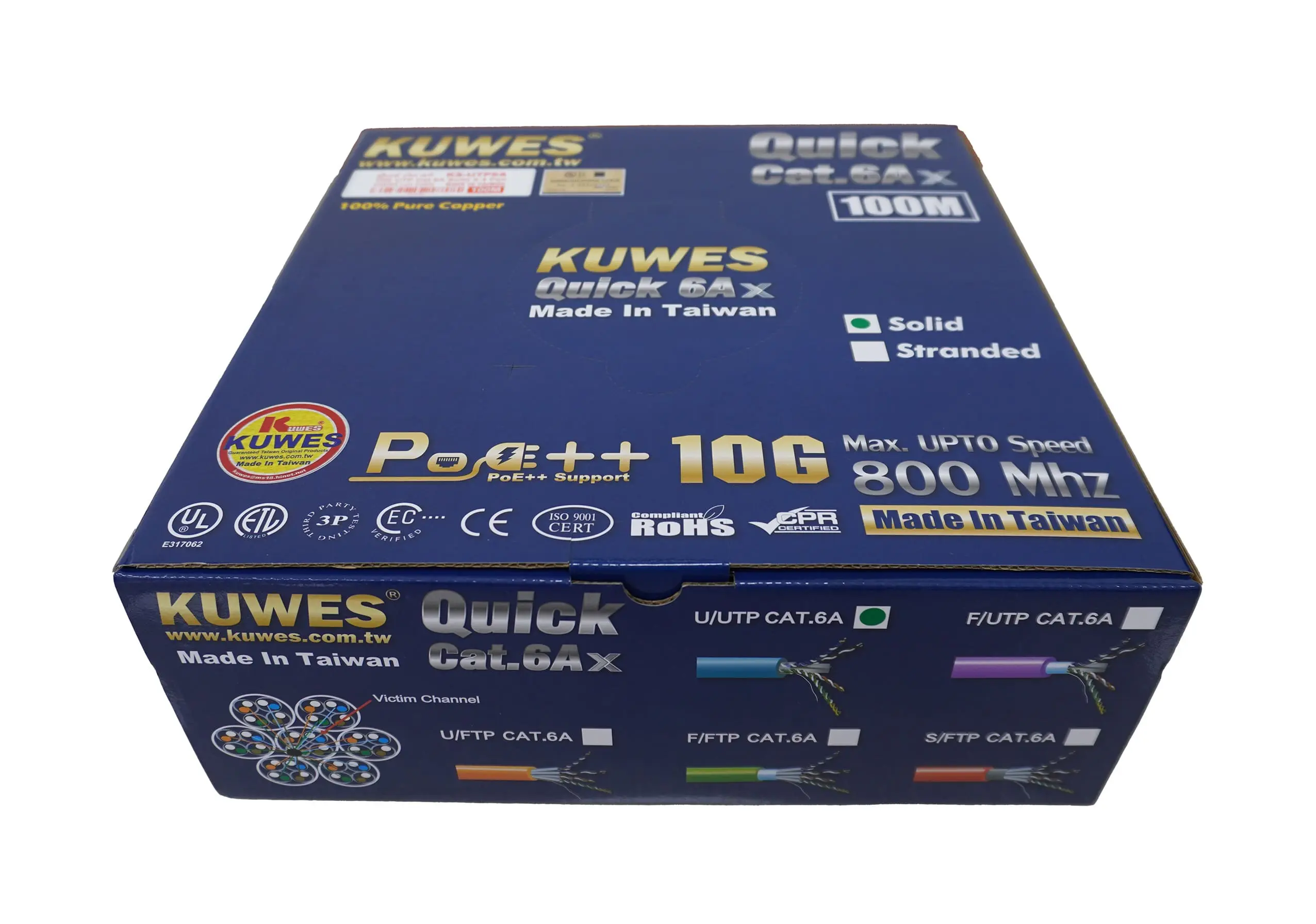

Kuwes CAT6A UTP Pure Copper Indoor 100m Grey
Kuwes SKU: 25984 Out of stock We don’t want to sell you something you don’t need.. Our goal is to help you choose the right product for your needs and budget, so if this is not the right gadget for you, we can help you find the perfect solution and even set it up and deliver it to you ready for use! Call us at 7000 8111 or Contact The Fidelity Team
€119,00
CompareConductor: Material / Size Bare copper / 23AWG
Insulation:
- HDPE
- Min. Avg. Thickness: 0.208 mm;
- Min. Thickness: 0.195 mm
Color Code:
- Pair 1: Blue & White/Blue;
- Pair 2: Orange & White/Orange
- Pair 3: Green & White/Green;
- Pair 4: Brown & White/Brown
Jacket:
- 75°C PVC Compound
- Min. Avg. Thickness: 0.685 mm;
- Min. Thickness: 0.558 mm
- Approximate O.D.: 7.8 mm +/- 0.3mm
Electric Requirements: (Cable length: 100M)
- Characteristic Impedance(Zo): 85～115Ω (1～800 MHz)
- DC. Resistance Capacitance Unbalance: 5%
- Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
- Conductor Resistance: 7.32Ω/ 100M 20°C Max
- Mutual Capacitance: 5600 pF/100m Max
- Spark Test: Outer Jacket: 2.5KV, Insulation: 1.75KV, Dielectric Strength: 1.5KV AC/2secs
- Nominal Velocity of Propagation (NVP): 68 %
Temperature Range :
- Installation Temperature 0 to 50°C
- Storage Temperature -20 to 70°C
- Operation Temperature -10 to 60°C
